Product Details:
|
|
| Place of Origin: | Chongqing, China |
|---|---|
| Brand Name: | DFSK |
| Model Number: | EC36 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | By Container |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 70000 units per year |
|
Detail Information |
|||
| Product Name: | EC36 | NEDC Pure Electric Range (KM): | 300 |
|---|---|---|---|
| CLTC Pure Electric Range (KM: | 270 | Fuel Type: | Gasoline |
| Number Of Seats (pcs): | 6,7 | Number Of Doors (pcs): | 5 |
| L*W*H(MM): | 4500*1680*2000 | Wheelbase(mm): | 3050 |
| Peak Power (KW): | 60 | Maximum Torque(N.m): | 200 |
| Highlight: | DFSK EC36 ev Minivan,300KM ev Minivan,7 Passengers mini bus 4500 X 1680 X 2000MM |
||
Product Description

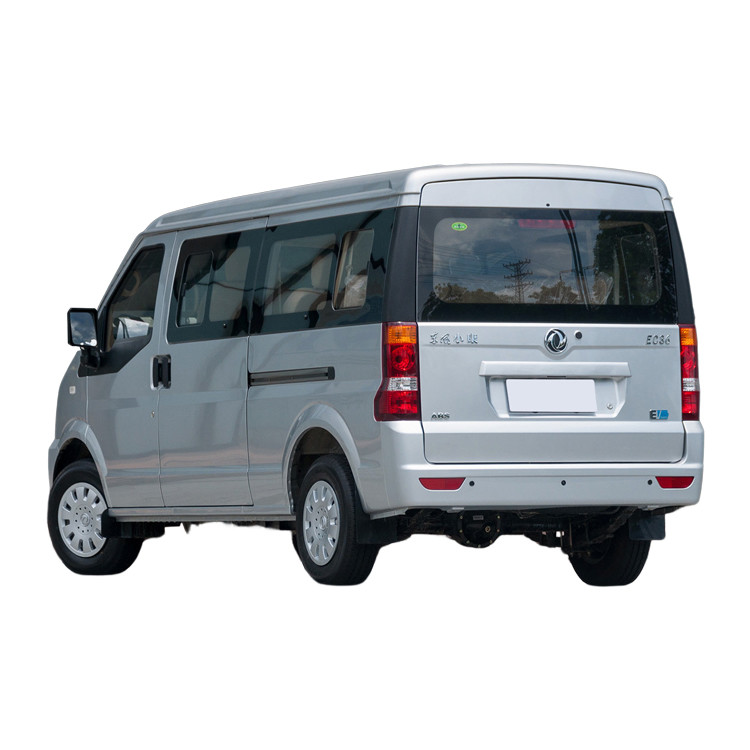

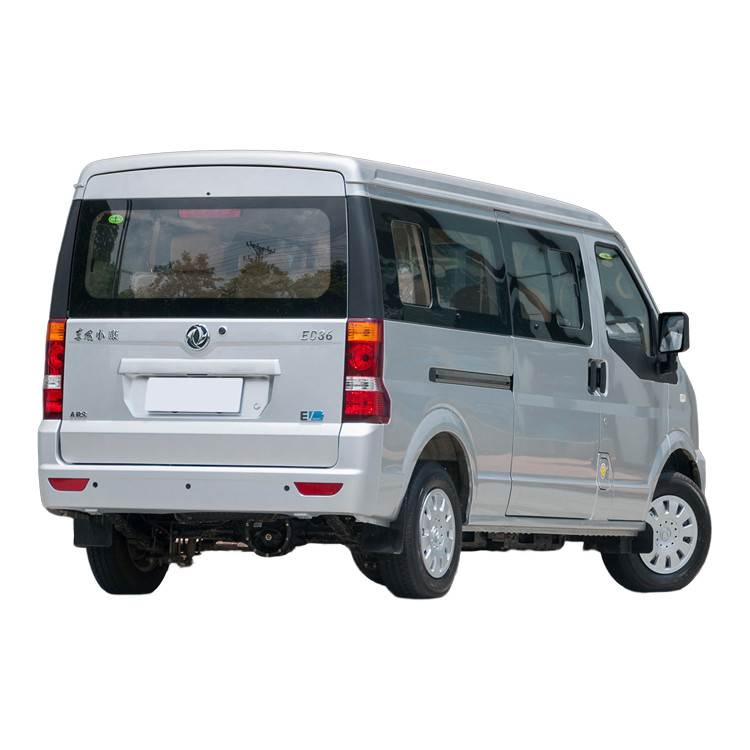

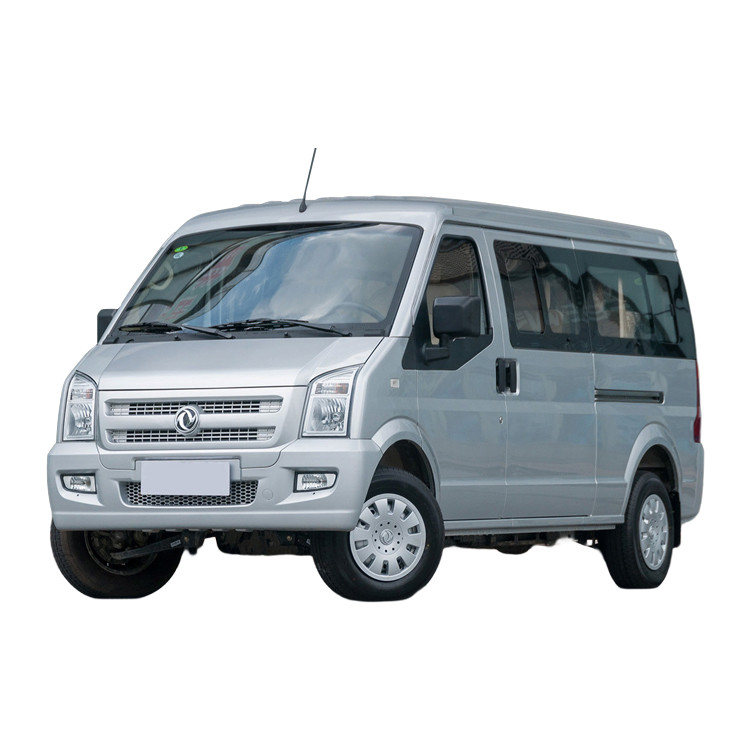

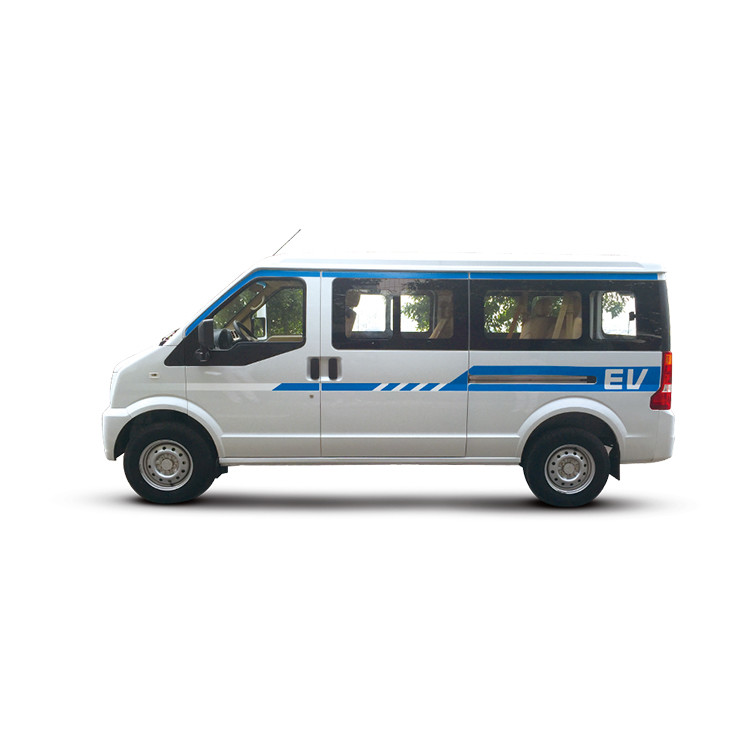

DFSK EC36 ev Minivan 7 Passengers mini bus for Sale
DFSK EC36 Specification
|
Items
|
EC36 | |
|
Basic parameters
|
||
| Size: length * width * height (mm) | 4500*1680*2000 | |
|
Wheelbase(mm)
|
3050 | |
|
Track Front/Rear (mm)
|
1435/1435 | |
|
Kerb weight(kg)
|
1575 | |
|
Total mass(kg)
|
2135 | |
|
Max speed (km/h)
|
100 | |
|
Engine
|
||
|
Power Battery
|
CATL | Gotion |
|
Power battery capacity kWh
|
41.86 | 41.932 |
|
NEDC pure electric range (KM)
|
300 | |
|
CLTC pure electric range (KM)
|
270 | |
|
Peak power (KW)
|
60 | |
|
Maximum torque(N.m)
|
200 | |
|
Body structure
|
||
|
Body type
|
load-bearing body (double sliding door) | load-bearing body (double sliding door) |
|
Drive type
|
rear-mounted rear-wheel drive | |
|
Front suspension type
|
McPherson independent suspension | |
|
Rear suspension type
|
5-leaf spring non-independent suspension | |
|
Brake
|
front disc and rear drum | |
|
Steering type
|
electric power steering | |
|
Tire model
|
185R14 | |
|
Model Configuration
|
||
|
Window lift
|
electric front door | |
|
Reversing radar
|
YES | |
|
Central lock
|
front door + middle door: remote central control | |
|
Airbag
|
driver's airbag | |
|
Anti-lock braking system
|
YES | |
| Instrument cluster | battery level display + seat belt not fastened + door not closed reminder + remaining range display + tire pressure alarm | |
|
In-car audio and video system
|
electronically adjustable radio | |
|
Air conditioning
|
single steam (double steam is optional) | |
|
Number of seats
|
6, 7 (11 Seats Overseas Edition) | |
"●" - indicates that this configuration is available, "○" - indicates that this configuration is optional,
and "-" - indicates that there is no such configuration;
DFSK EC36 Features
EC36 is equipped with batteries from CATL and Gotion High-tech respectively. The length, width and height of the new car are 4500/1680/2000mm respectively, and the wheelbase is 3050mm. In terms of configuration, the new car is equipped with reversing radar, main driver airbag, anti-lock braking system, electric radio, etc. In terms of power, the new car is equipped with an electric motor with a maximum power of 60 KM and a peak torque of 200 N.m, and a maximum speed of 100km/h.
